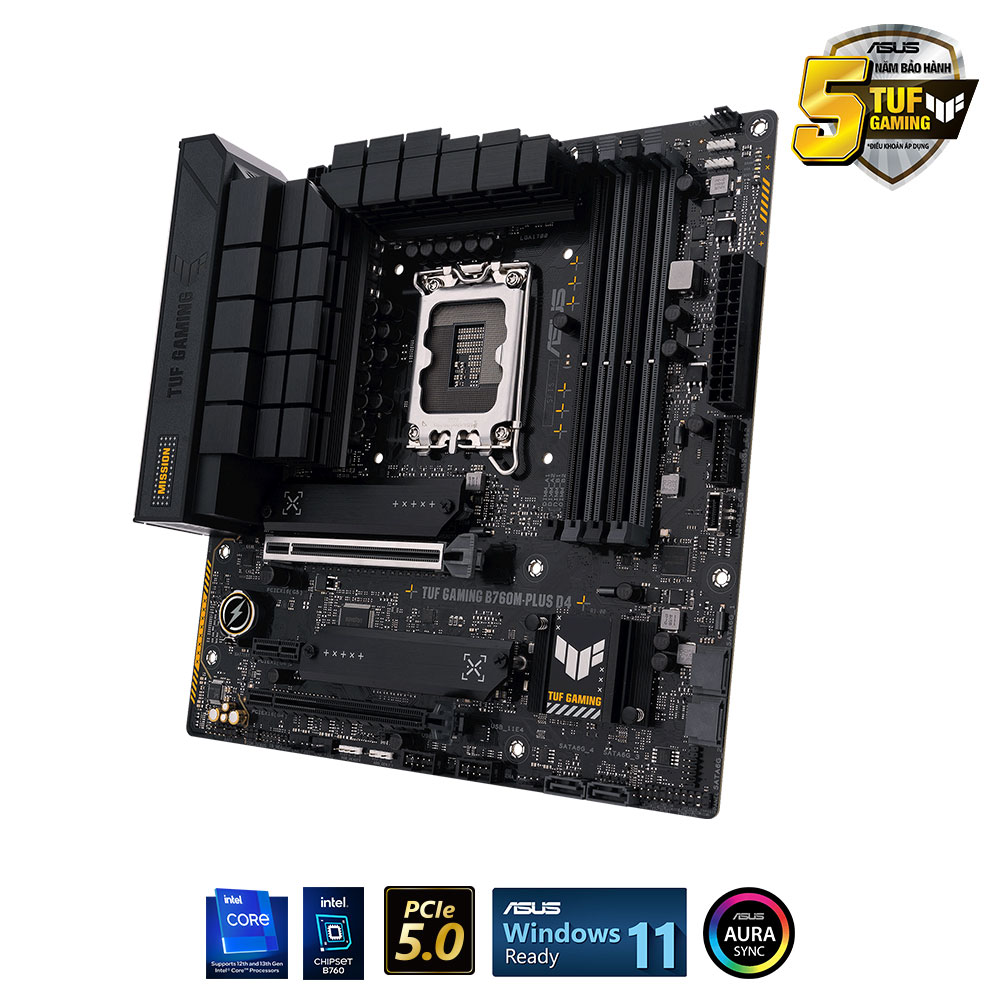

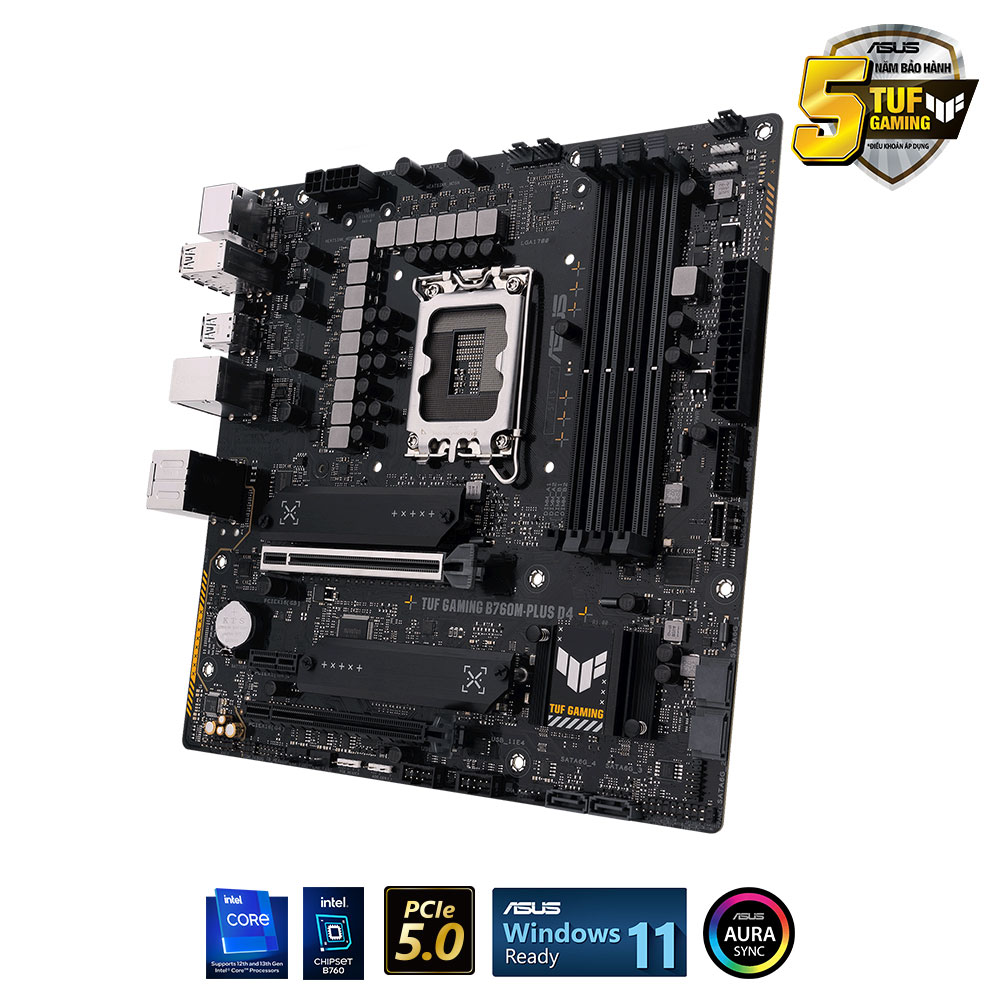

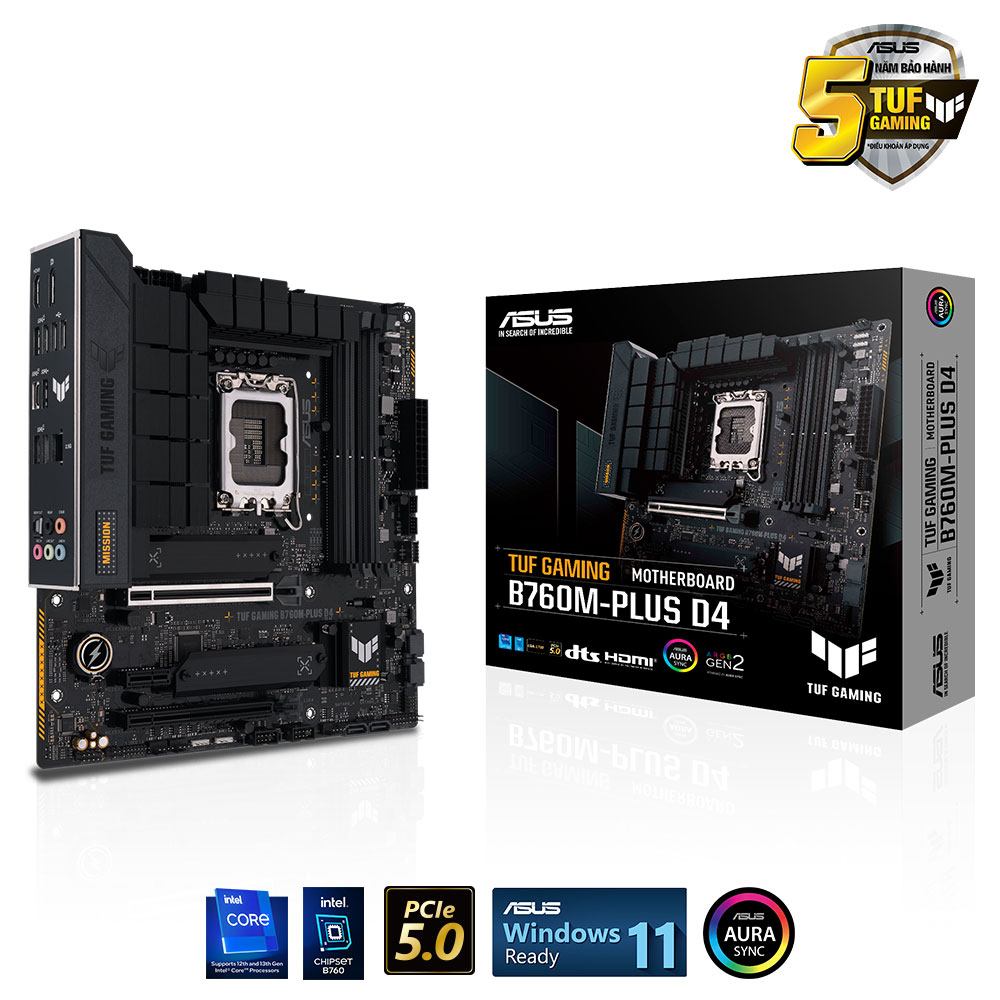

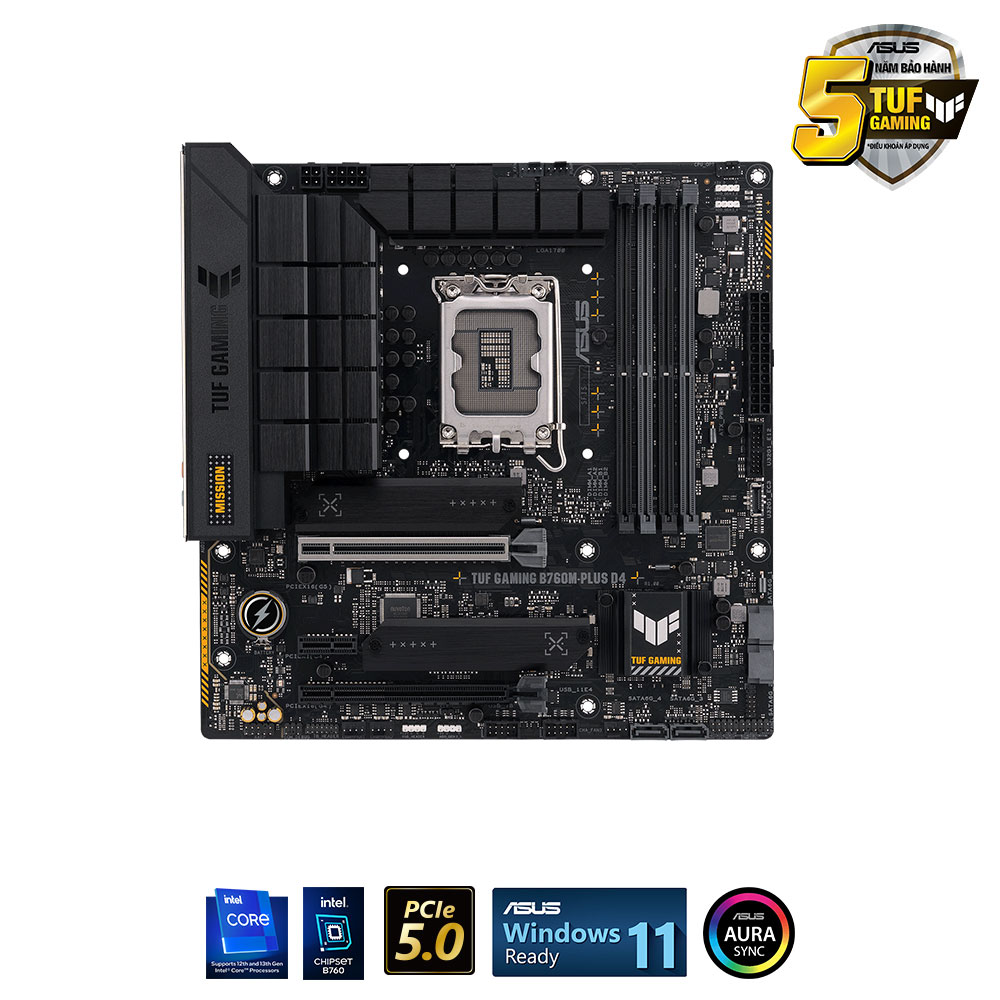

Mainboard ASUS TUF GAMING B760M-PLUS D4 4

Mainboard ASUS TUF GAMING B760M-PLUS D4

Người dùng đánh giá  | Tình trạng: Có hàng

- Chipset: Intel B760
- Socket: Intel LGA 1700
- Kích thước: M-ATX
- Số khe RAM: 4 khe (Tối đa 128GB)

Bảo hành: 36 tháng

Giá bán:3.690.000 VNĐ [Đã có VAT]
Giá thị trường:5.120.000 VNĐ
Thêm vào giỏ

Yên tâm mua sắm tại Thiên Lộc

  • Giao hàng miễn phí nội thành Hải Dương
  • Thanh toán thuận tiện
  • Sản phẩm 100% chính hãng
  • Bảo hành tại nơi sử dụng
  • Giá cạnh tranh nhất thị trường

Thông số kỹ thuật



Sản phẩm Bo mạch chủ
Tên Hãng ASUS
Model TUF GAMING B760M-PLUS D4
CPU hỗ trợ Hỗ trợ cho thế hệ thứ 12 and 13 Intel® Core Socket LGA1700
Chipset B760
RAM hỗ trợ 4 x DIMM, Max. 128GB, DDR4  5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Khe cắm mở rộng Intel® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Ổ cứng hỗ trợ Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Cổng kết nối (Internal) I/O Connectors  Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header
Cổng kết nối (Back Panel) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 2 ports (4 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
LAN / Wireless 1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Kích cỡ mATX Form Factor 24.4 cm x 24.4 cm

Đặc điểm nổi bật

Mainboard ASUS TUF GAMING B760M-PLUS D4 Mainboard ASUS TUF GAMING B760M-PLUS D4 Mainboard ASUS TUF GAMING B760M-PLUS D4 Mainboard ASUS TUF GAMING B760M-PLUS D4

Đóng gói

Mainboard ASUS TUF GAMING B760M-PLUS D4
