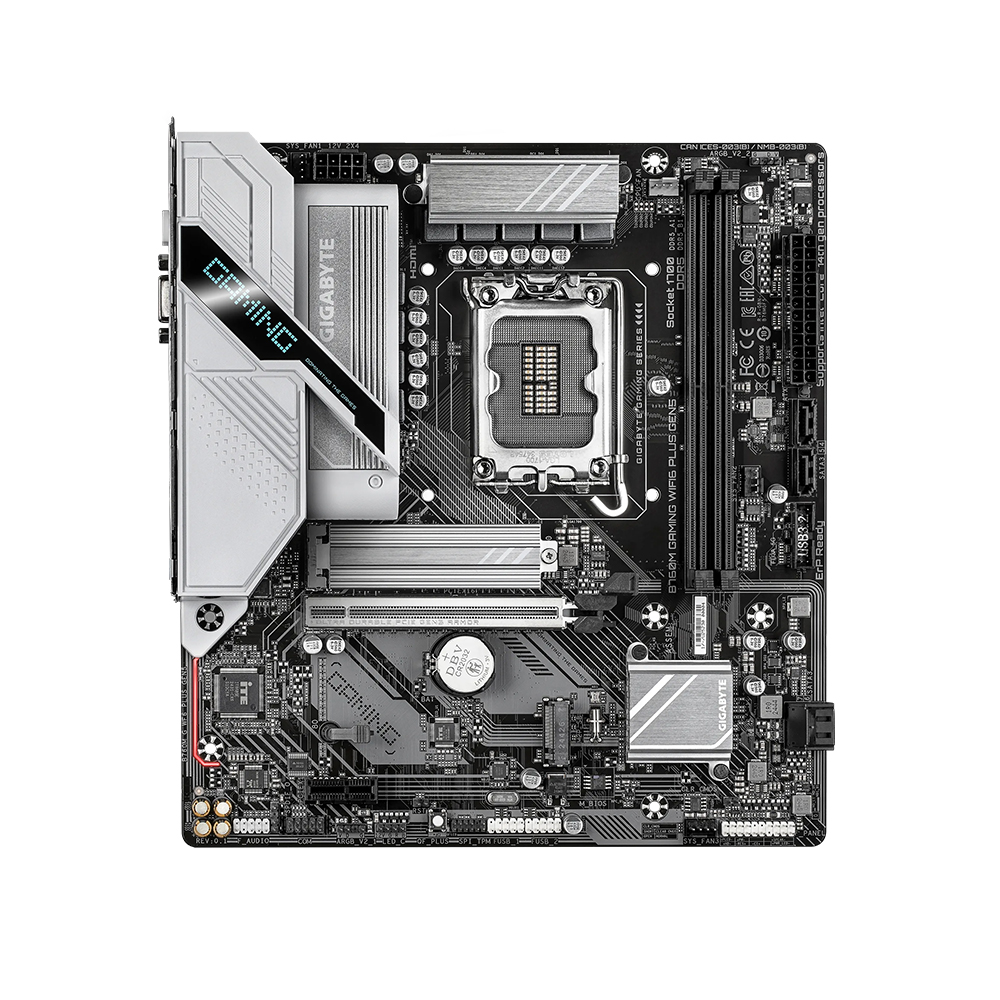

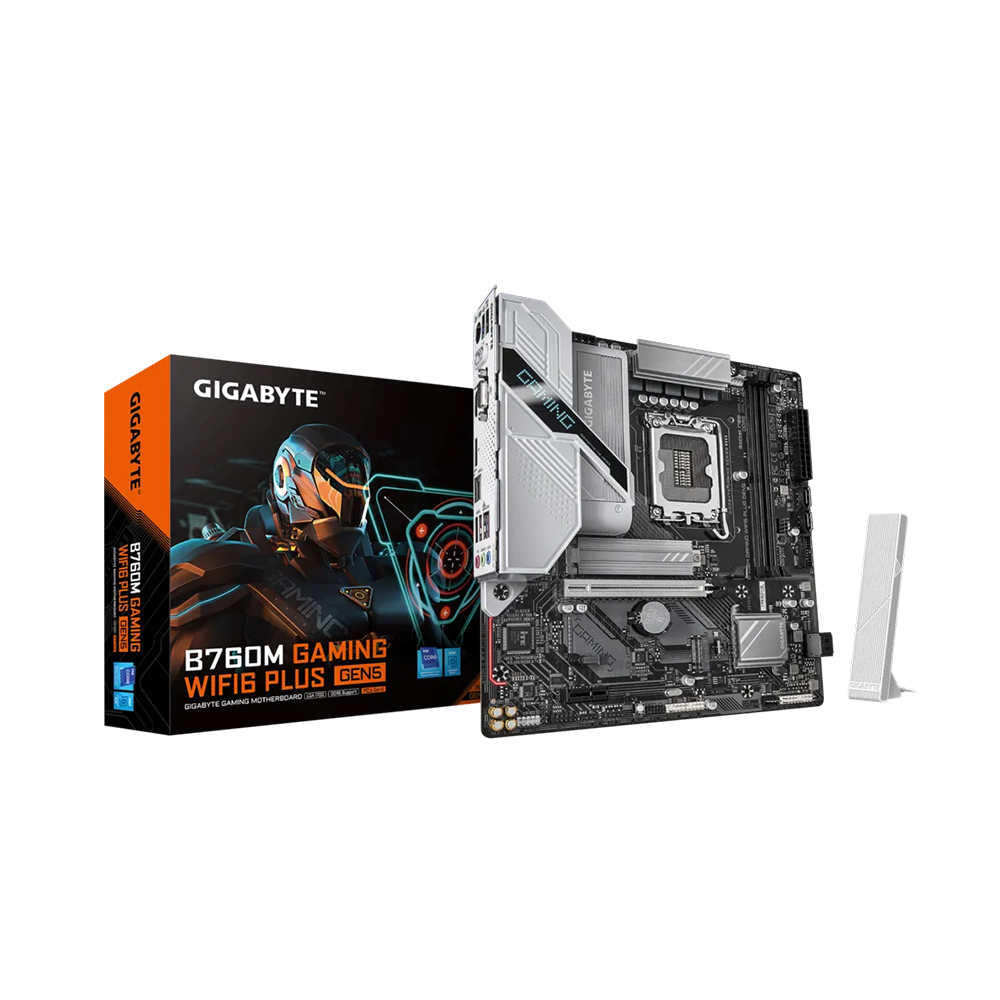

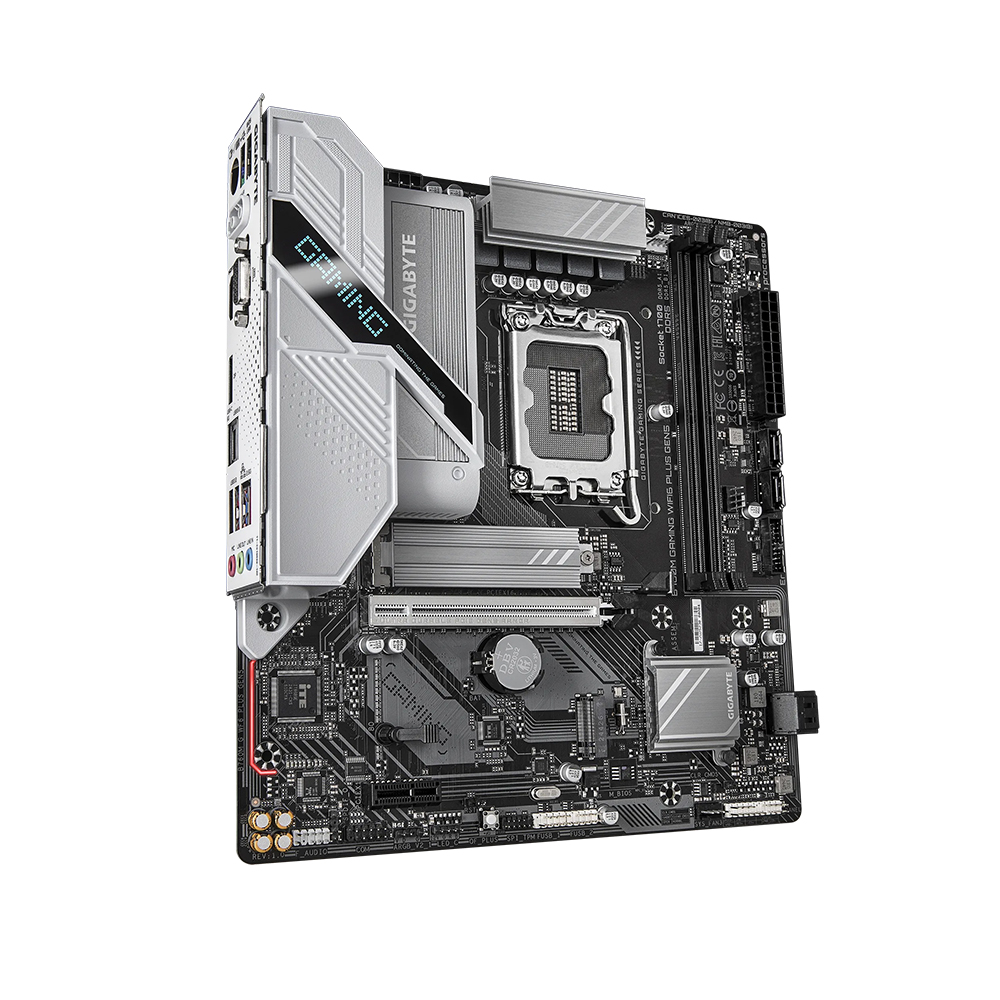

Mainboard Gigabyte B760M GAMING WIFI6 PLUS GEN5 DDR5 (Bluetooth) 1

Mainboard Gigabyte B760M GAMING WIFI6 PLUS GEN5 DDR5 (Bluetooth)

Người dùng đánh giá  | Tình trạng: Có hàng

- Socket: LGA1700 hỗ trợ CPU intel 14th, 13th, and 12th Generation
- Kích thước: Micro ATX
- Khe cắm RAM: 2 khe (Tối đa 128 GB)
- Khe cắm mở rộng: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16, 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
- Khe cắm ổ cứng: 1 x M.2 connector, 1 x M.2 connector, 4 x SATA 6Gb/s connectors

Bảo hành: 36 tháng

Giá bán:3.939.000 VNĐ [Đã có VAT]
Thêm vào giỏ

Yên tâm mua sắm tại Thiên Lộc

  • Giao hàng miễn phí nội thành Hải Dương
  • Thanh toán thuận tiện
  • Sản phẩm 100% chính hãng
  • Bảo hành tại nơi sử dụng
  • Giá cạnh tranh nhất thị trường

Thông số kỹ thuật

Sản phẩm

Bo mạch chủ

Tên Hãng

Gigabyte

CPU hỗ trợ

Intel

Chipset

B760

RAM hỗ trợ

14th and 13th Generation Intel® Core™ i9/i7 Processors:
- Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium®Gold and Celeron® Processors:
- Support for DDR5 4800/4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory

Khe cắm mở rộng

CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.


Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Ổ cứng hỗ trợ

CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

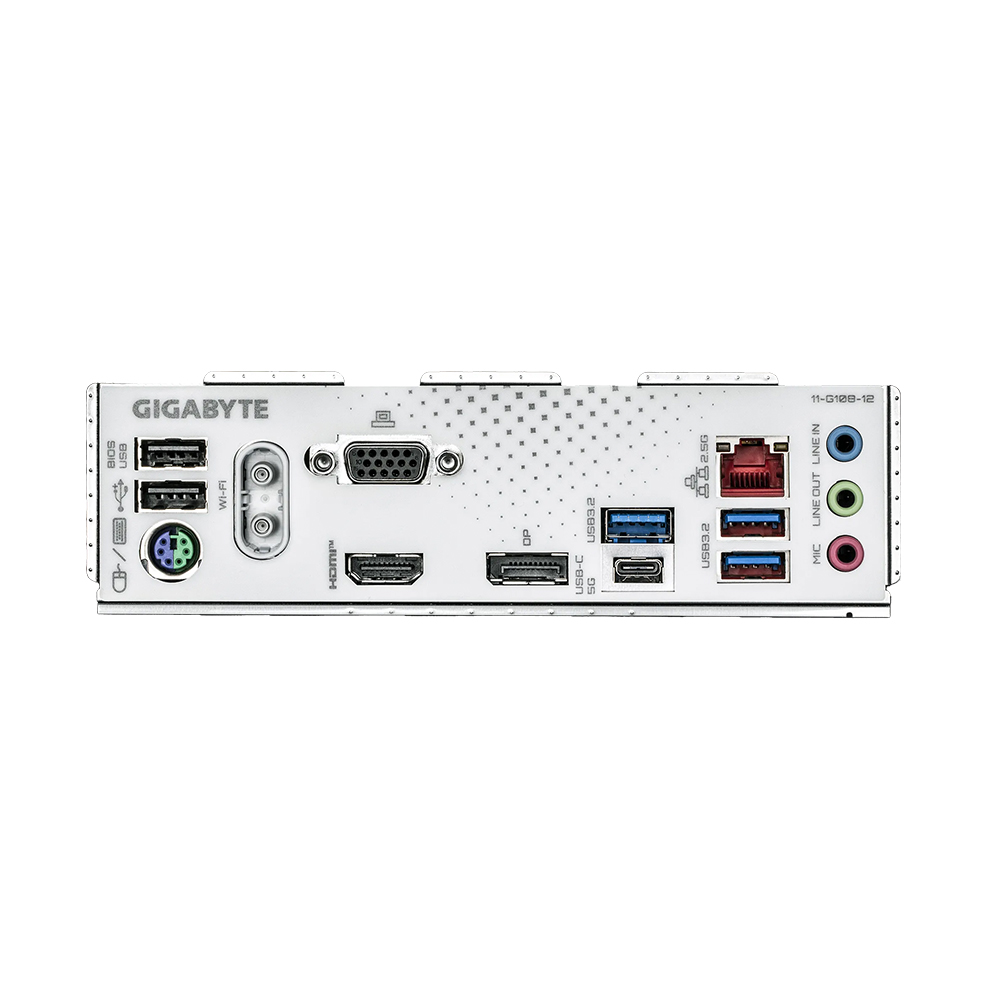

Cổng kết nối (Back Panel)

2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x antenna connectors (1T1R)
1 x D-Sub port (Note)
1 x HDMI port (Note)
1 x DisplayPort (Note)
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x RJ-45 port
3 x audio jacks

LAN / Wireless

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Realtek® Wi-Fi 6 RTL8851BE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 80MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Kích cỡ

Micro ATX Form Factor; 24.4cm x 22.5cm

Đặc điểm nổi bật
