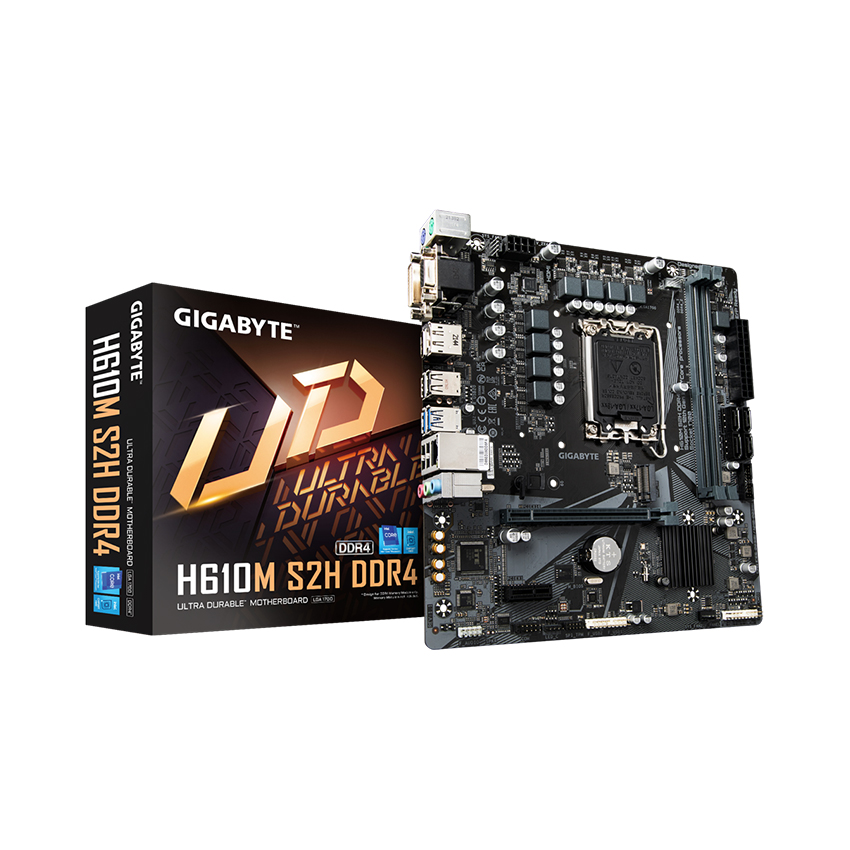

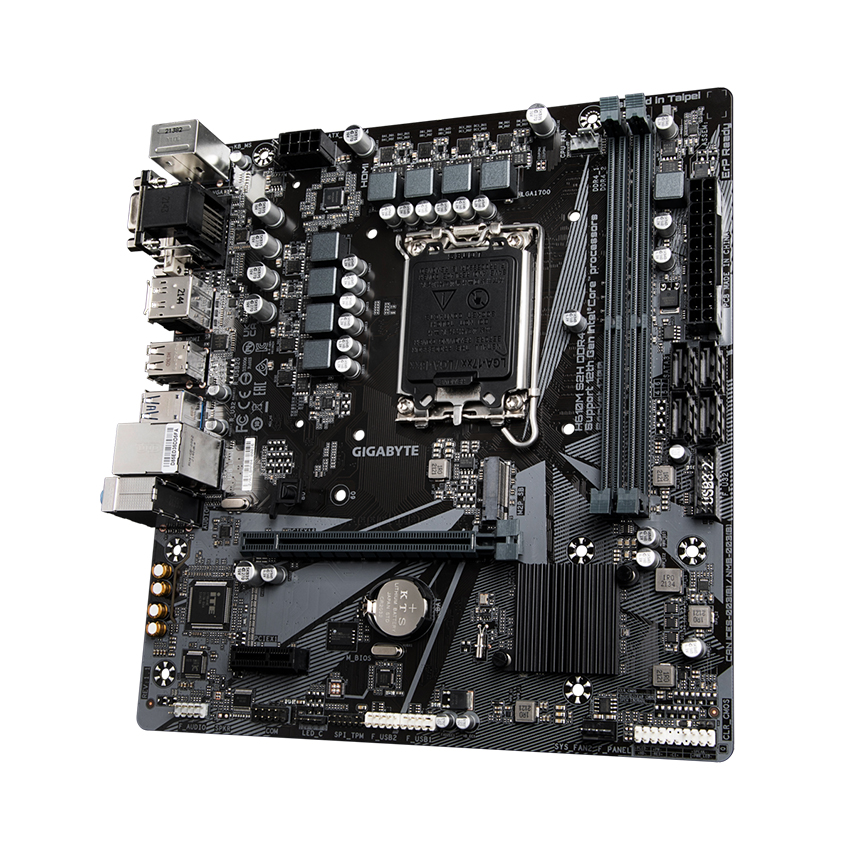

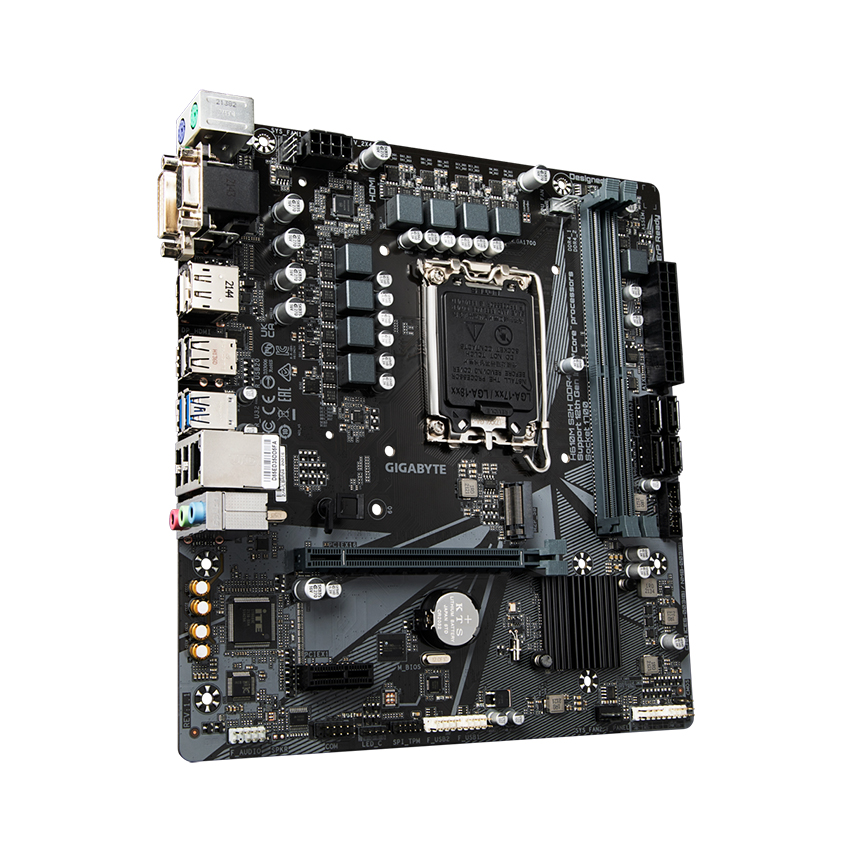

Mainboard Gigabyte H610M S2H DDR4

Sản phẩm

Bo mạch chủ

Tên Hãng

Gigabyte

Model

H610M S2H DDR4

CPU hỗ trợ

Intel

Chipset

H610

RAM hỗ trợ

Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16
1 x PCI Express x1 slot

Ổ cứng hỗ trợ

Chipset:

1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)

4 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x CPU fan header

2 x system fan headers

1 x RGB LED strip header

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Clear CMOS jumper

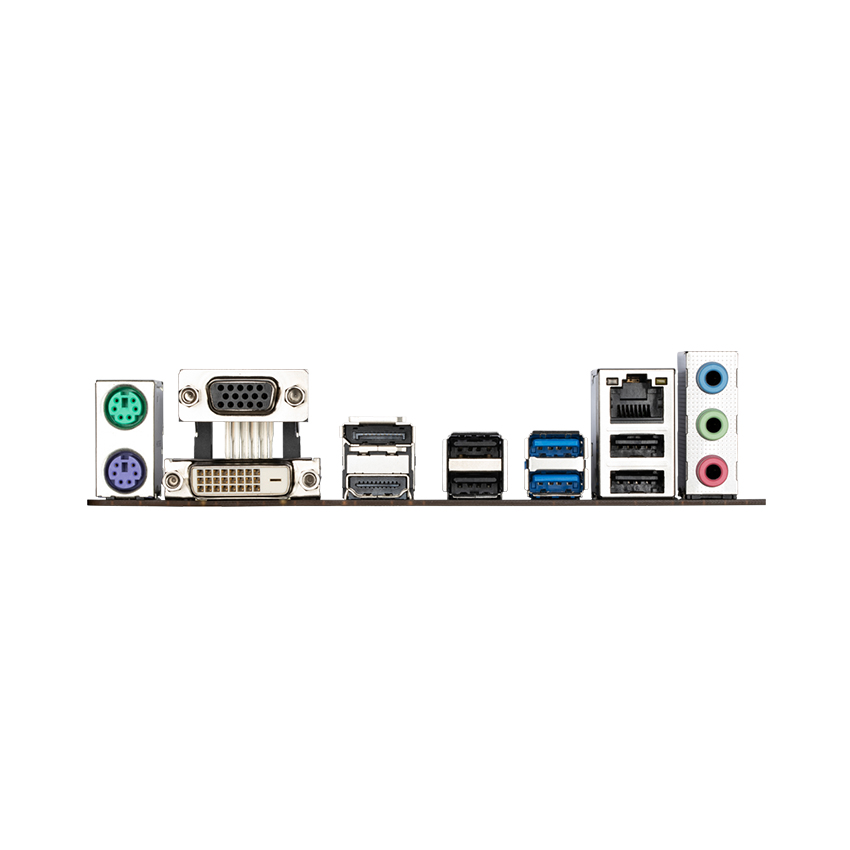

Cổng kết nối (Back Panel)

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x D-Sub port

1 x DVI-D port

1 x DisplayPort

1 x HDMI 2.0 port

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

LAN / Wireless

Intel® GbE LAN chip (1 Gbps/100 Mbps)

Kích cỡ

Micro ATX Form Factor; 23.0cm x 21.5cm
